Cube Controls Pedals Set SP01

PESETSP01GT
$1,236.00
Size Guide
Style :
Terms & conditions

Subcribe to back in stock notification

Upgrade your simulator with the SP01 Pedals. This new entry in the Cube Controls ecosystem is made to expand your possibilities and provide you with top performances. CNC machined aluminum main body, 100% carbon fiber throttle plate. Customizable in two version for Formula and GT lovers.

Mastering the speed

The SP01 Pedals ensure superior precision. The throttle plate, smooth and robust, perfectly pairs with the grip of our G+ Socks. The brake with its 200kg load cell ensures rock-solid feedback with several springs and rubber dampers compressible elements available to combine for the perfect setting. Our proprietary software will make the rest, ensuring options for the smoothest calibration.

SPECS

Main

  • Precision press-fit ball bearings on ALL pivot points
  • CNC machined 6061 and 7075 aluminum main structure
  • Optimized FEM design for a cutting edge flex-free structure
  • Custom brackets with adjustable main pedal body angle in 5° increments

Throttle

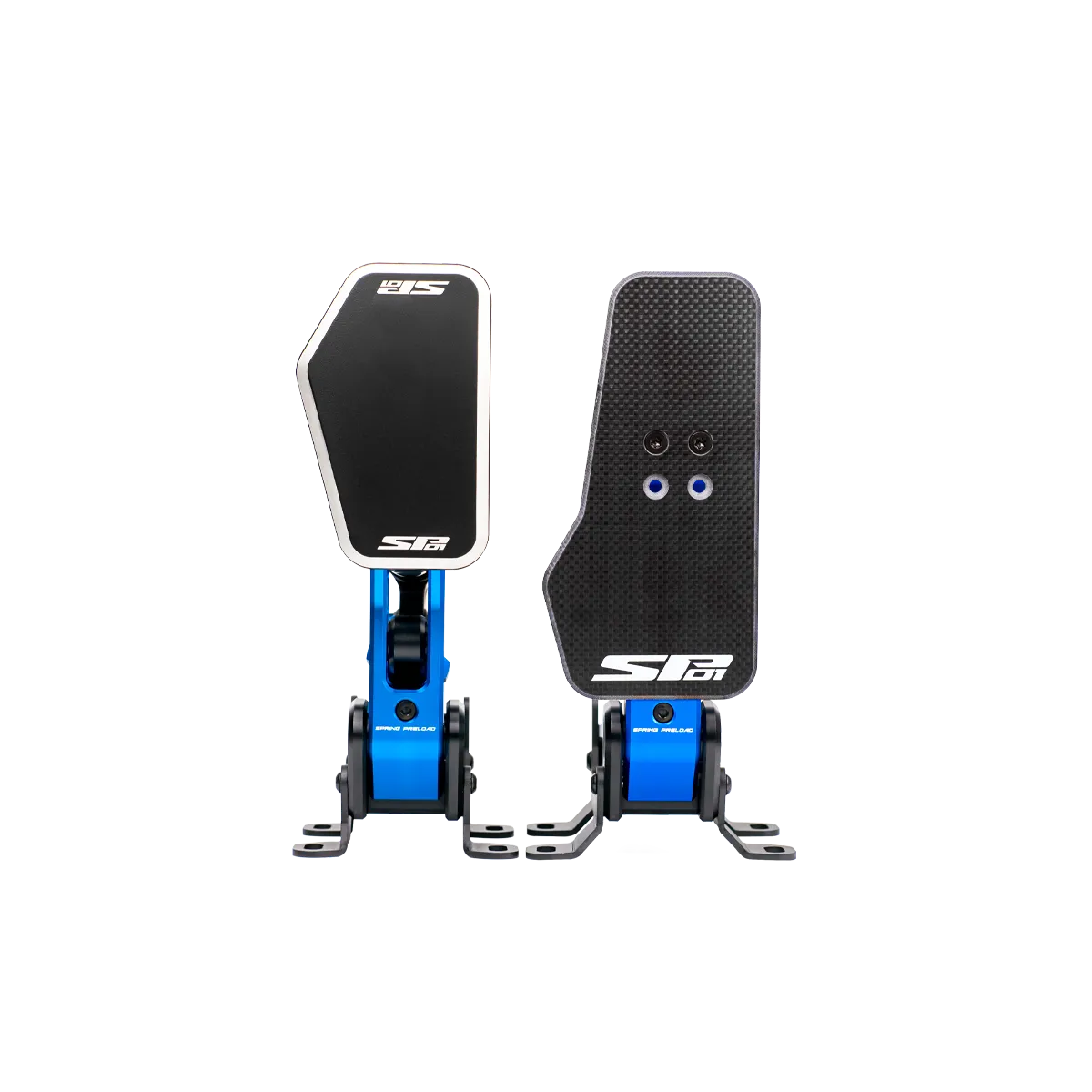

  • Carbon fiber pedal pad faceplate (Only in Formula Version)
  • Adjustable pedal throw by a dedicated knob on the main shaft
  • Easy to reach spring preload adjustment
  • Precision machined main shaft with high wear resistance plating
  • Tolerance machined self-lubricating nylon sleeve for the smoothest operation
  • 16 bit resolution hall sensor
  • USB-C connector for the main control electronics

Brake

  • Custom lightweight die-cast pad faceplate with textured grip
  • Fine-tuning spring preload option on the main pedal, and preload ring on the compression elements
  • Precision machined main shaft with high wear resistance plating
  • Custom designed fully hydraulic damper with 16 preload settings
  • Several springs and rubber dampers compression elements available
  • Self-centering springs and dampers washers
  • 200kg precision load cell
  • 16-bit resolution
