MOZA RACING SRP PEDAL

MOZA
MOZASRP
$239.00
Size Guide
$239.00
Terms & conditions

6 Sigma High Demand Product! SOLD OUT!

Pre-order now and next available batch Nov 15th.

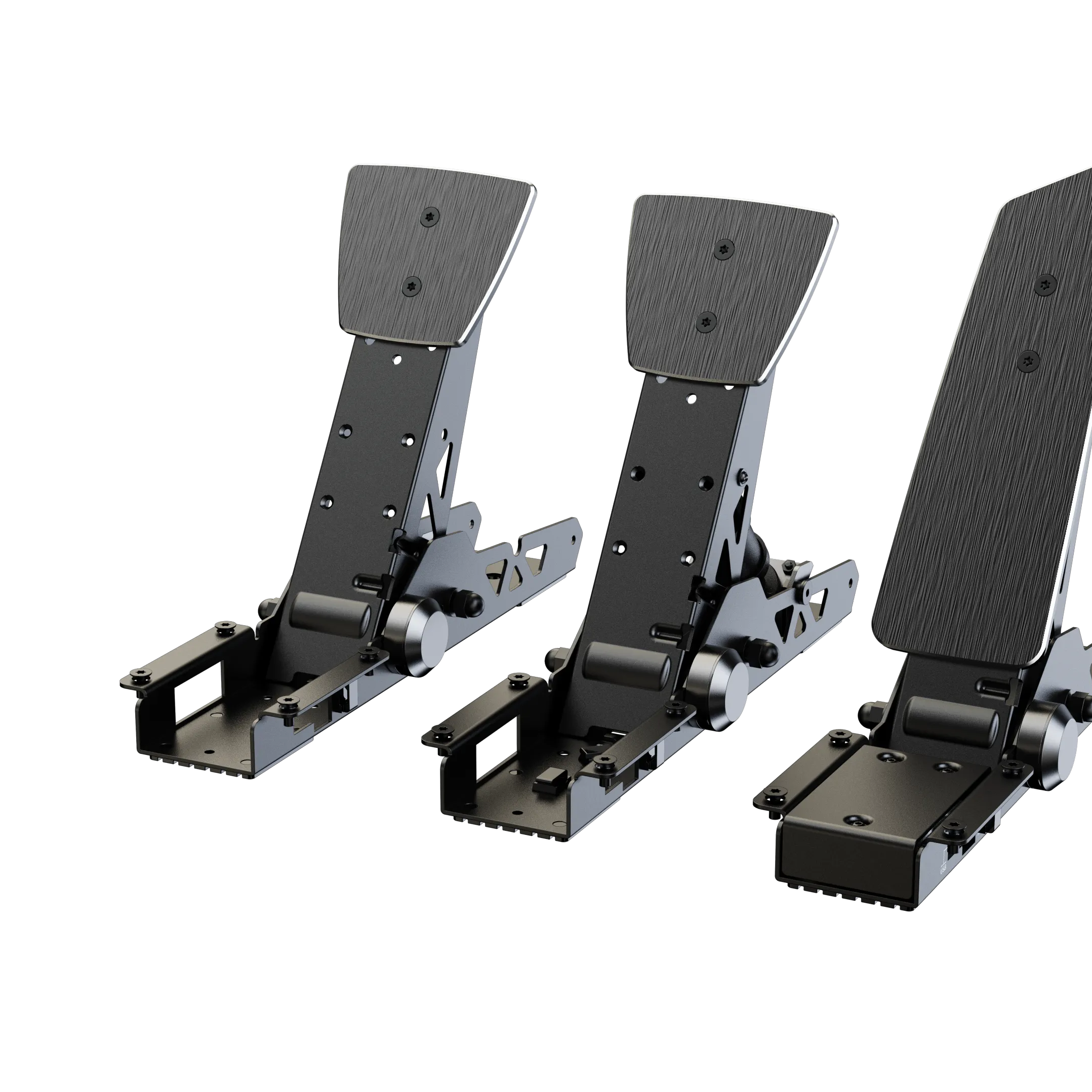

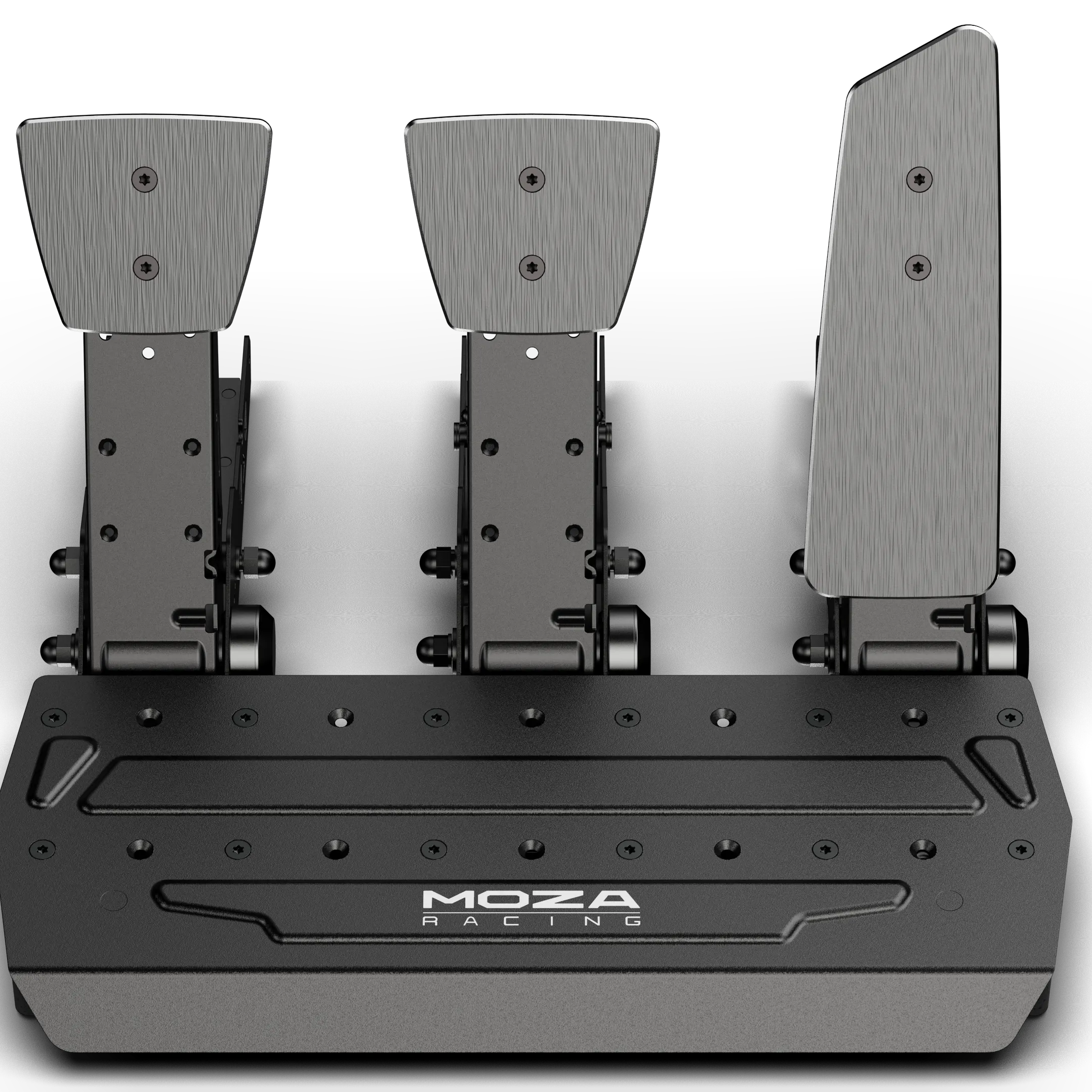

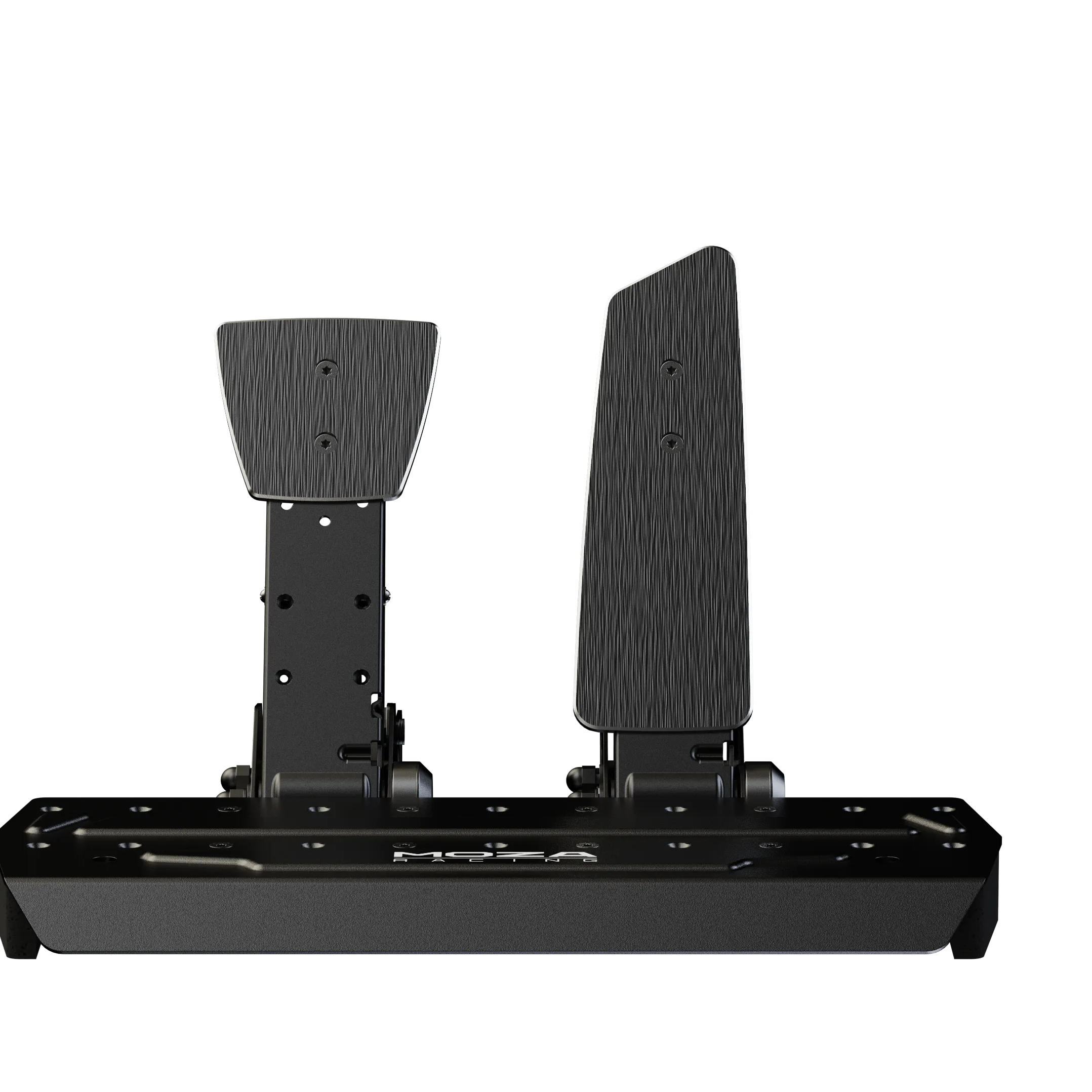

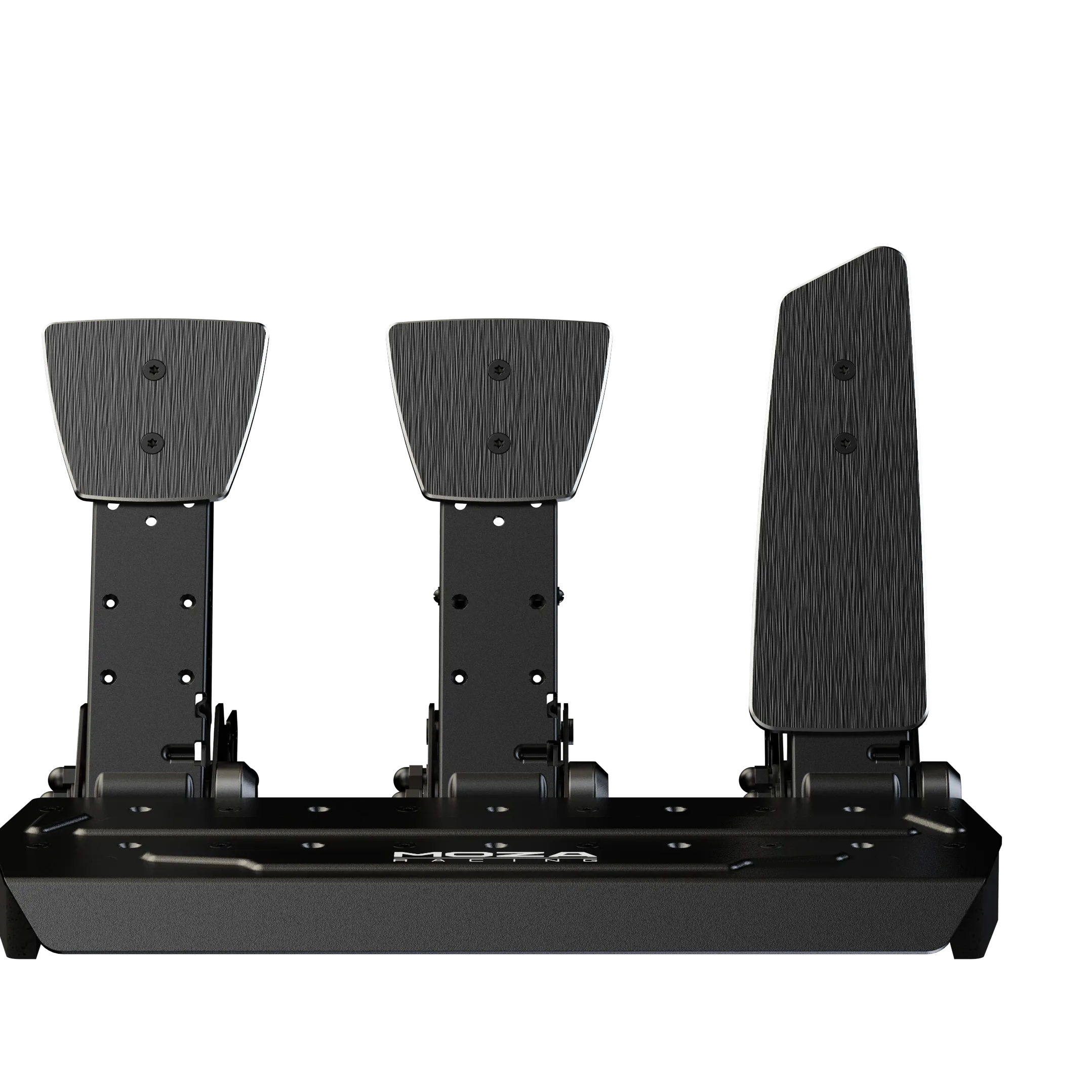

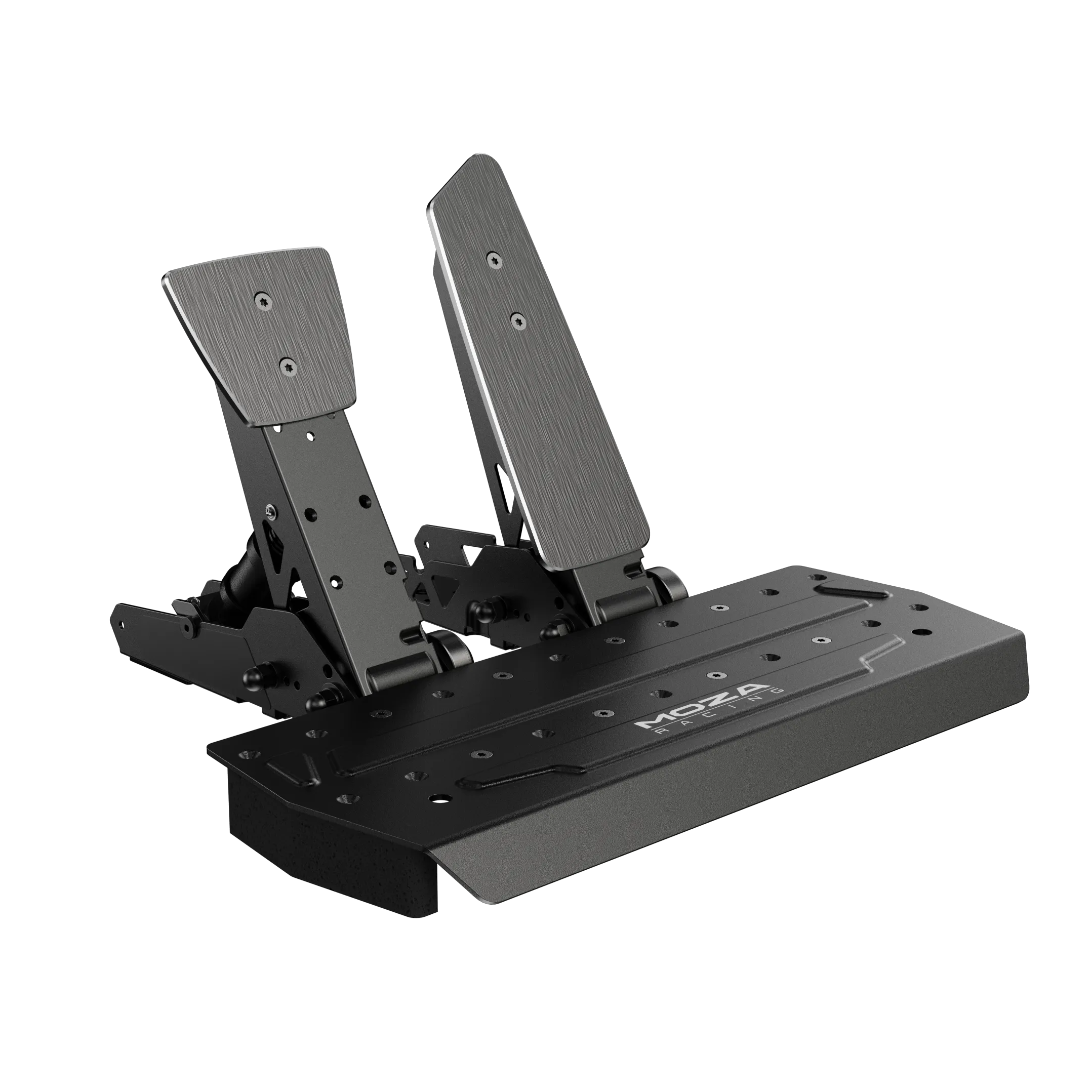

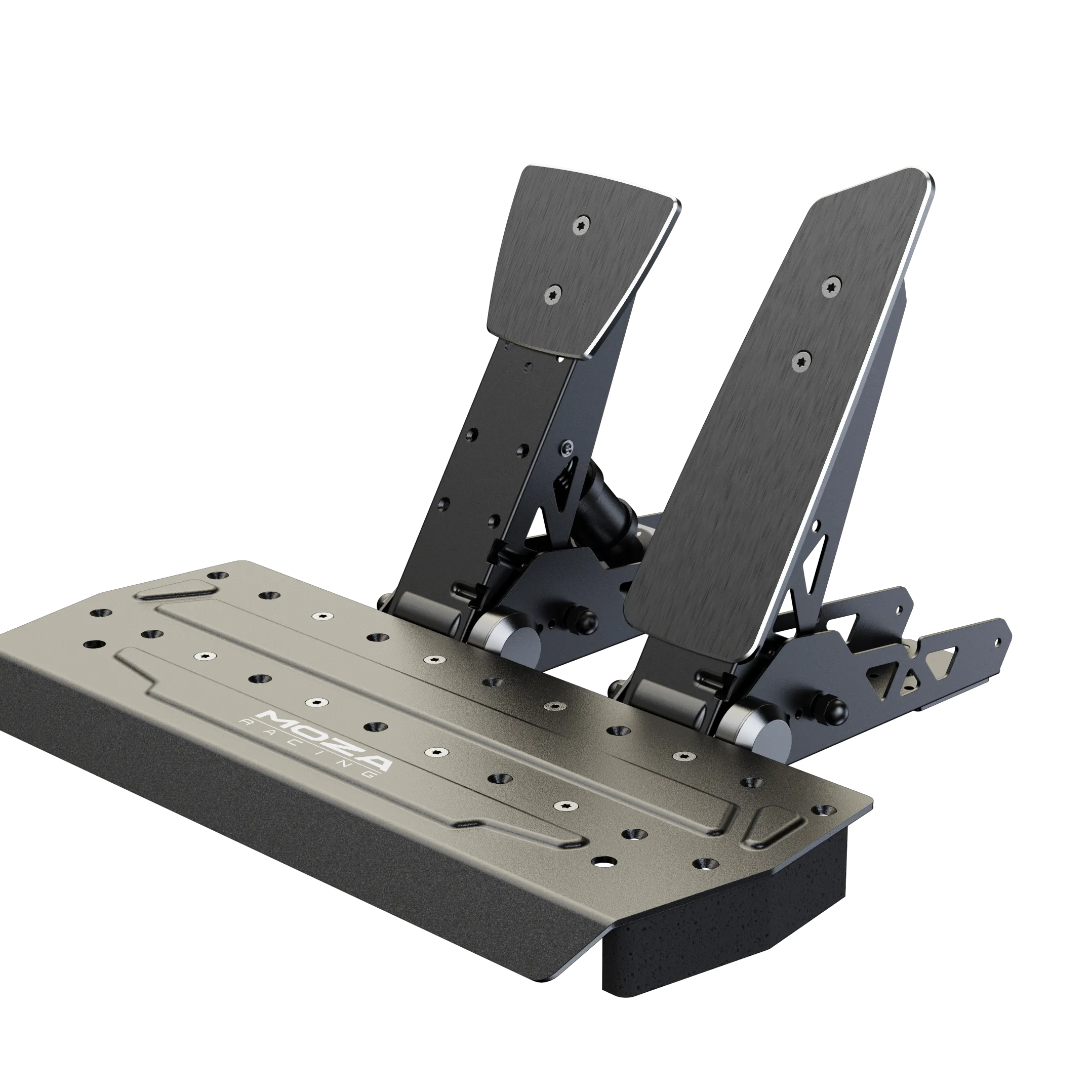

MOZA SRP Pedal

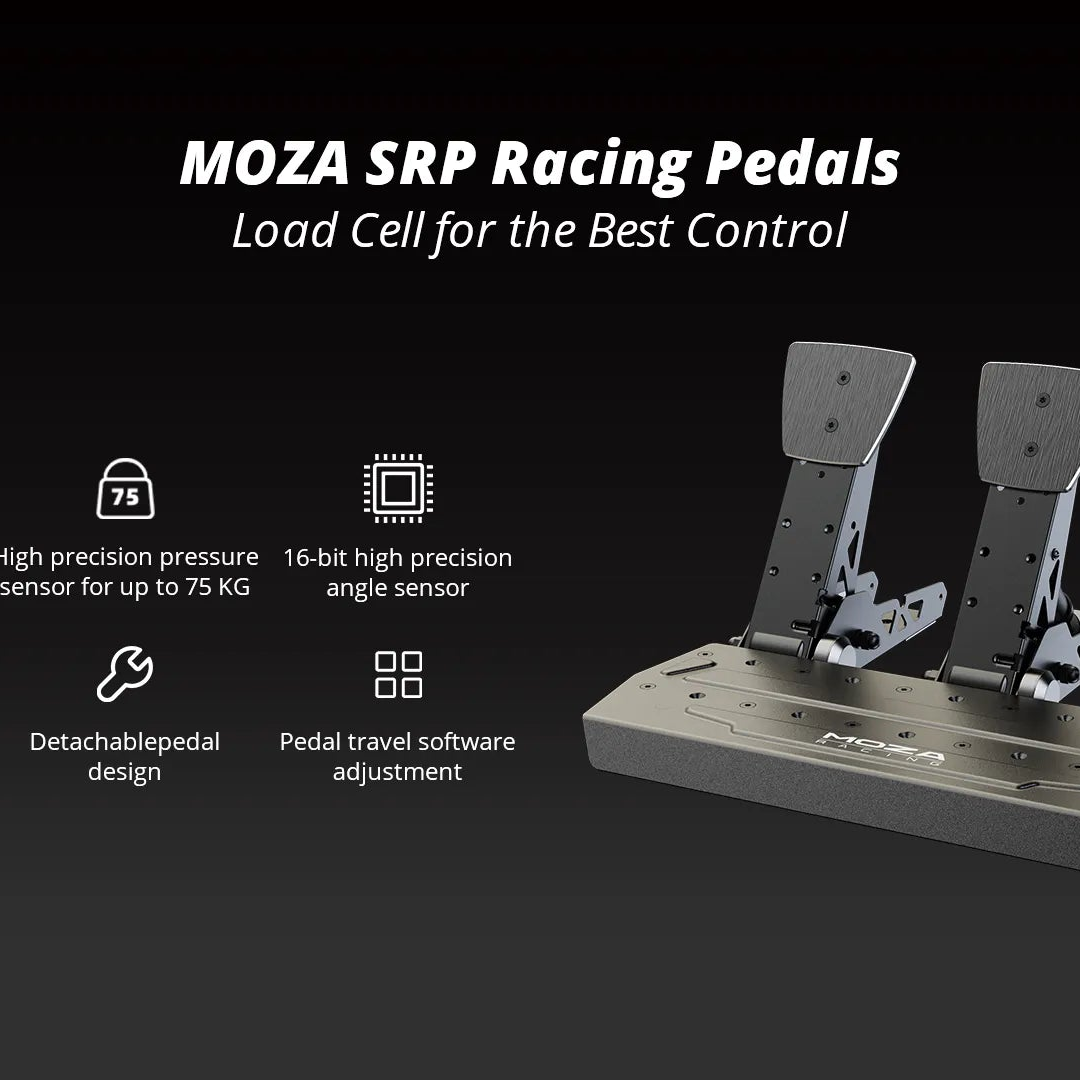

Load Cell for the Best Control

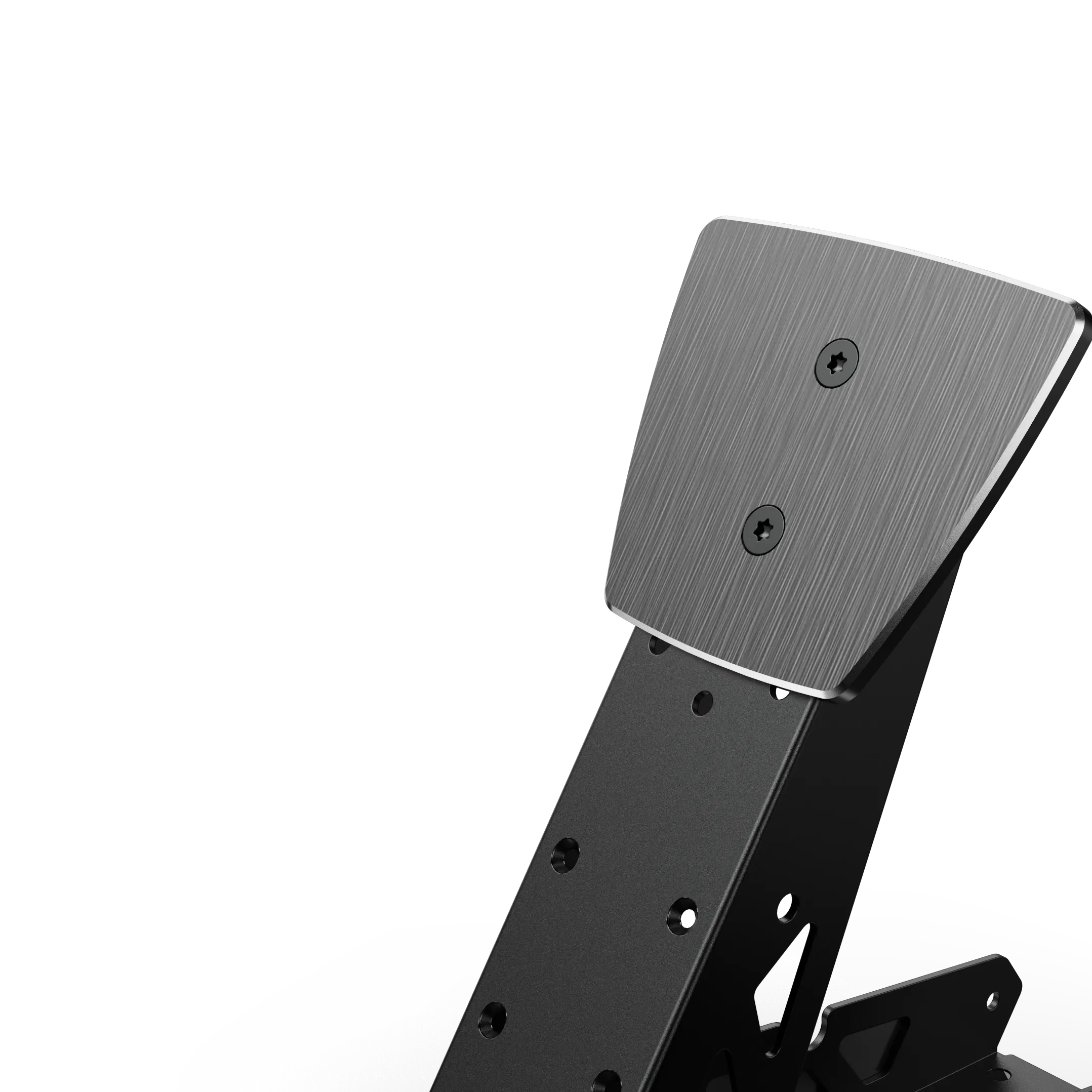

Made with High-strength Steel

The pedal is machined with high-strength steel, giving superior quality and endurance.

Floor Mounted Organ Type Accelerator Pedal

The organ-type accelerator pedal allows the driver's foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.

High Precision Pressure Sensor with A Maximum Range of 75 KG

The MOZA SRP pedals utilize pressure sensors with a maximum range of 75KG. The pressure sensors will detect the braking pedal stopping pressure . A user can obtain the ideal braking force by controlling the amount of pressure applied on the braking pedal.

16-bit High Precision Magnetic Encoder

The brake, clutch and throttle pedals all use 16-bit precision magnetic encoder with 65536 PPR resolution, a much higher resolution and more stable than a Hall sensor.

Dual Sensor Fusion Algorithm

The brake utilizes a pressure and angle sensor, allowing fine tuning of braking. The initial stage is dominated by the angle sensor, allowing racers to control the braking angle, the mid and last stage is controlled by the pressure sensor, which makes the pedal easier to control.

Braking Spring and Damping Block Combined

Utilizing both a braking spring and damping block, racers can enjoy more control in the initial stage pedal travel, with a signature stiffness in the final stages of braking, highly simulating a real foot feel.

Direct connection with PC through USB port

The MOZA SRP pedals could connect to PC easily through a USB port and calibrate through the MOZA Pit House software. Compatible with all simracing gears in the market.

Specs

Plate Material

High-strength steel

Color

Black

Braking Sensor

Pressure sensor+angle sensor

Max Range of Pressure Sensor

75KG

Throttle Sensor

Angle sensor

Clutch Sensor

Angle sensor

Angle Sensor Resolution

16-bit (65536ppr)

Pedal Spacing

Adjustable

Pedal Surface Height

Adjustable

Pedal Connection Port

USB direct

Pedal Travel Software Adjustment

Yes

Pedal Travel Reverse Function

Yes

Anti-Slipping Bottom

Yes
